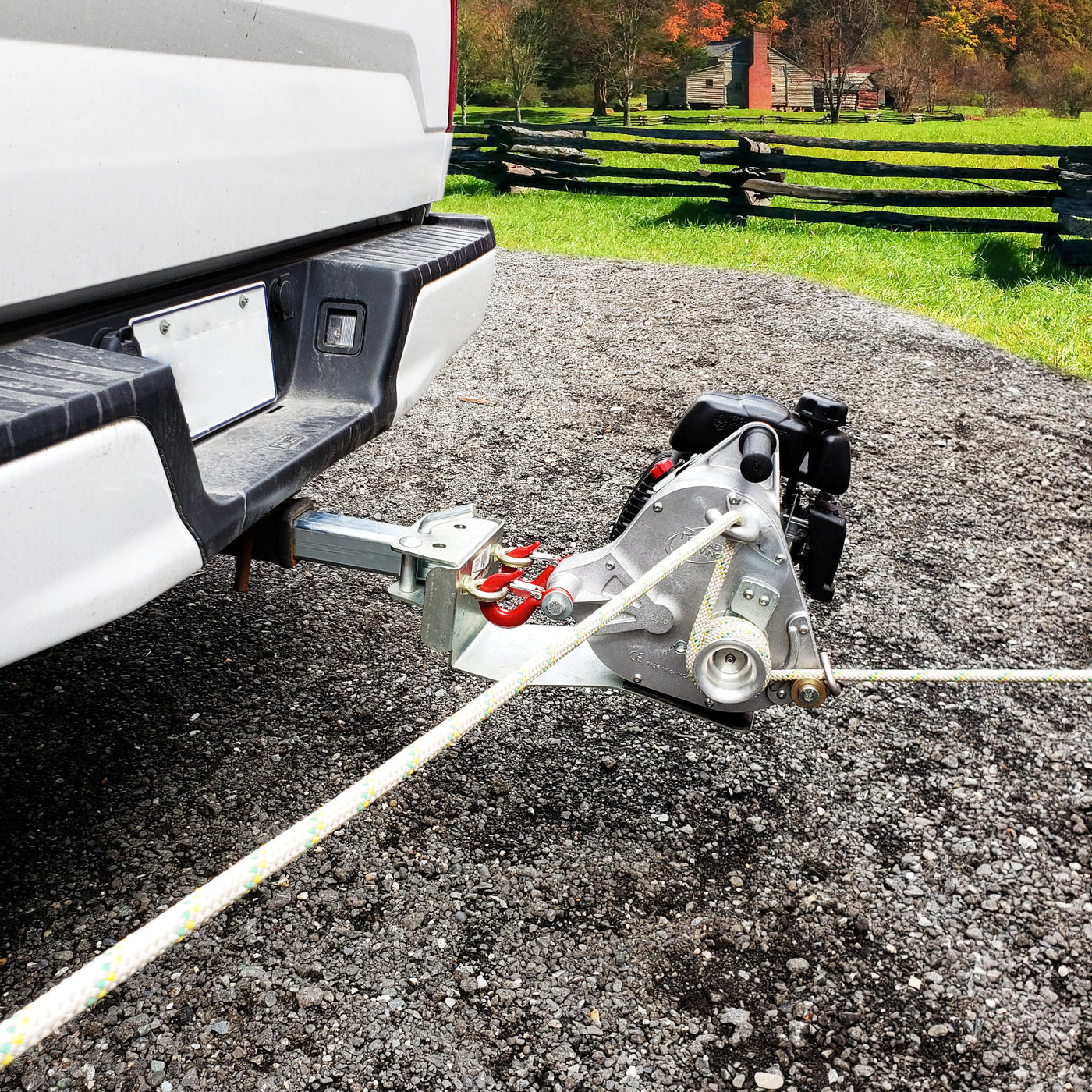

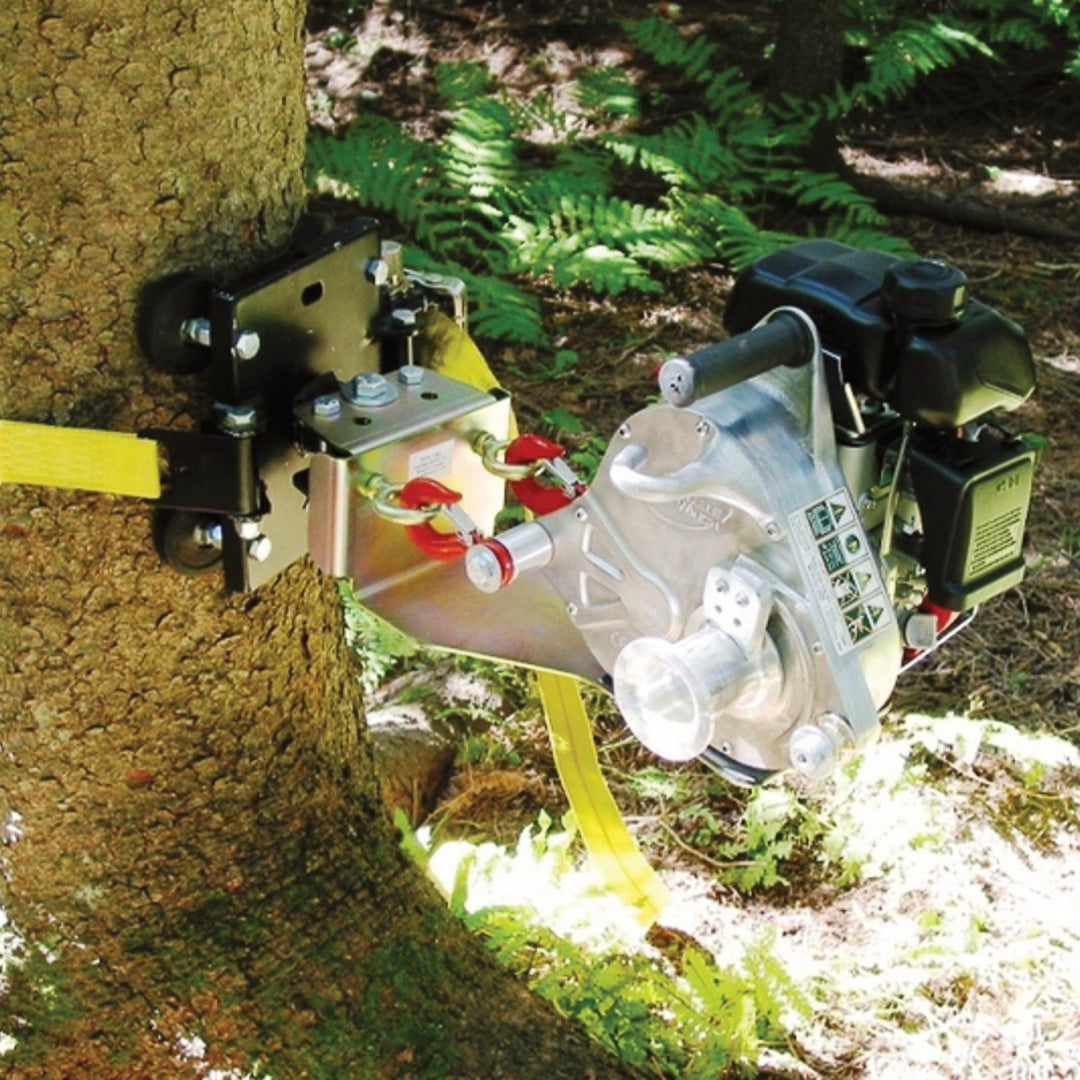

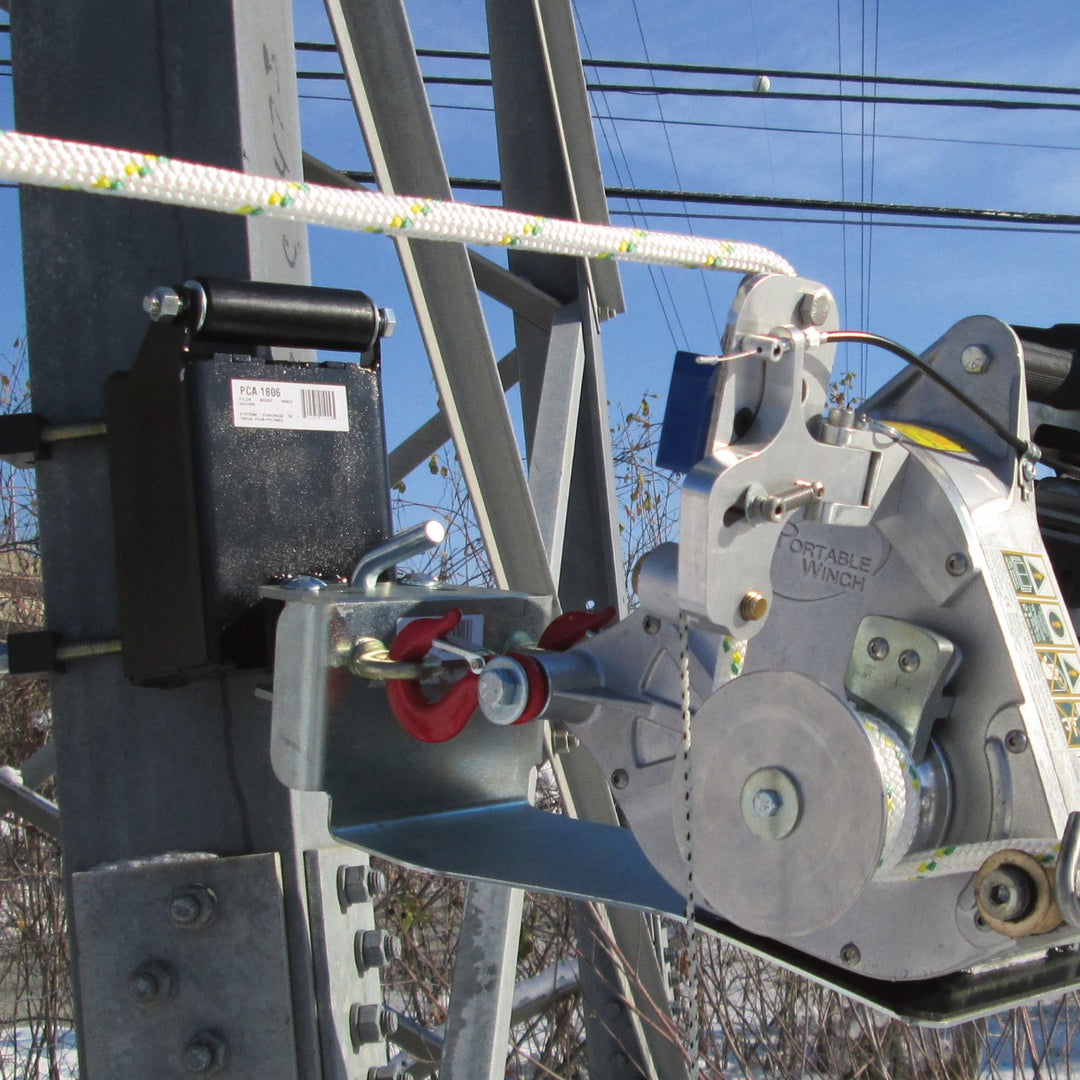

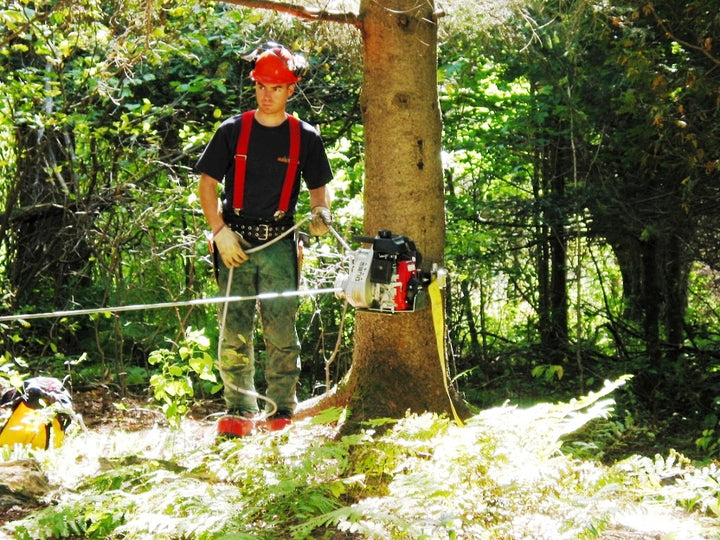

The winch support plate is designed to securely anchor the winch to a tree, pole, vehicle, or pylon when used in conjunction with one of our anchoring systems. It provides excellent stability for the winch and enables prolonged use from a fixed position. The plate is capable of swiveling 45 degrees on each side, ensuring a solid support that automatically aligns with the load. Additionally, it is equipped with rubber padding to absorb vibrations.
Note: This support plate cannot be used independently and must be combined with other accessories. The PCA-1268 allows for various accessory combinations based on the application and environment (see figures above).

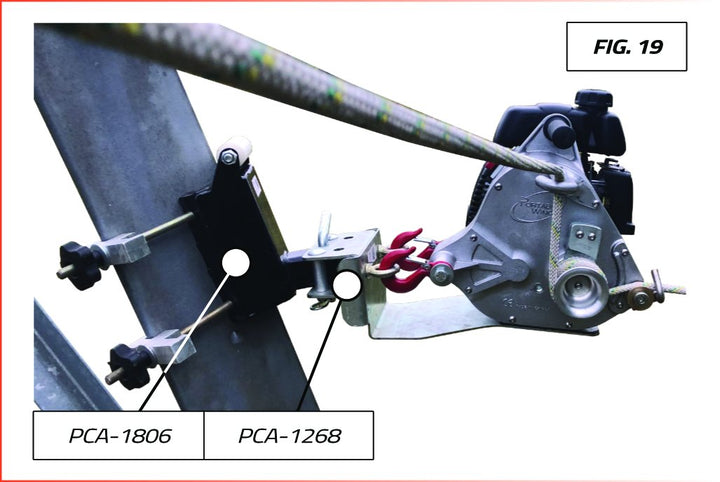

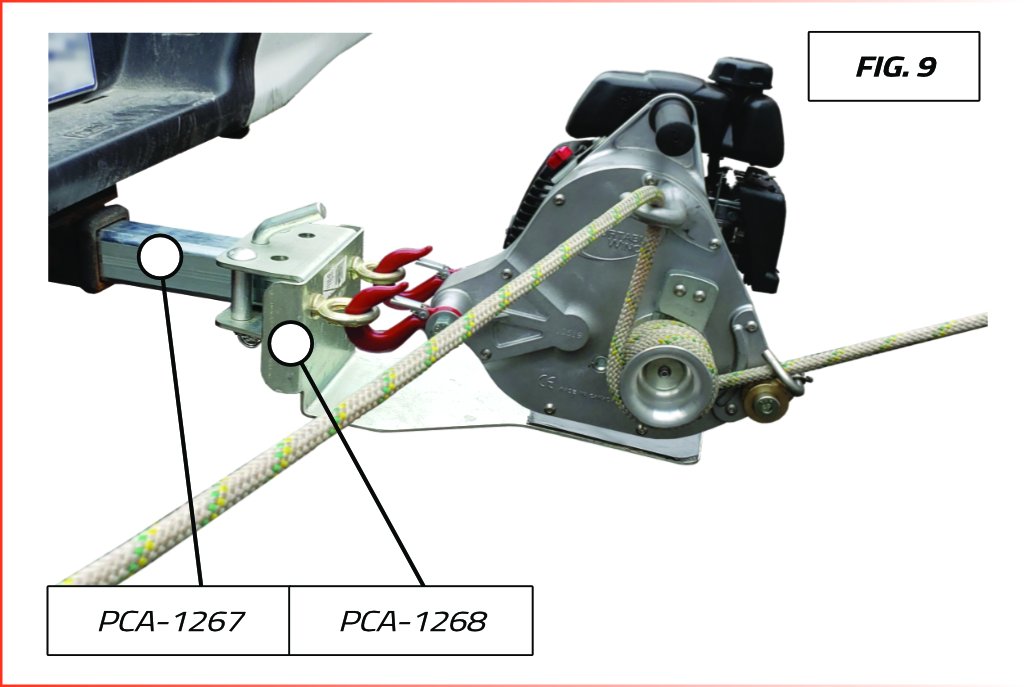

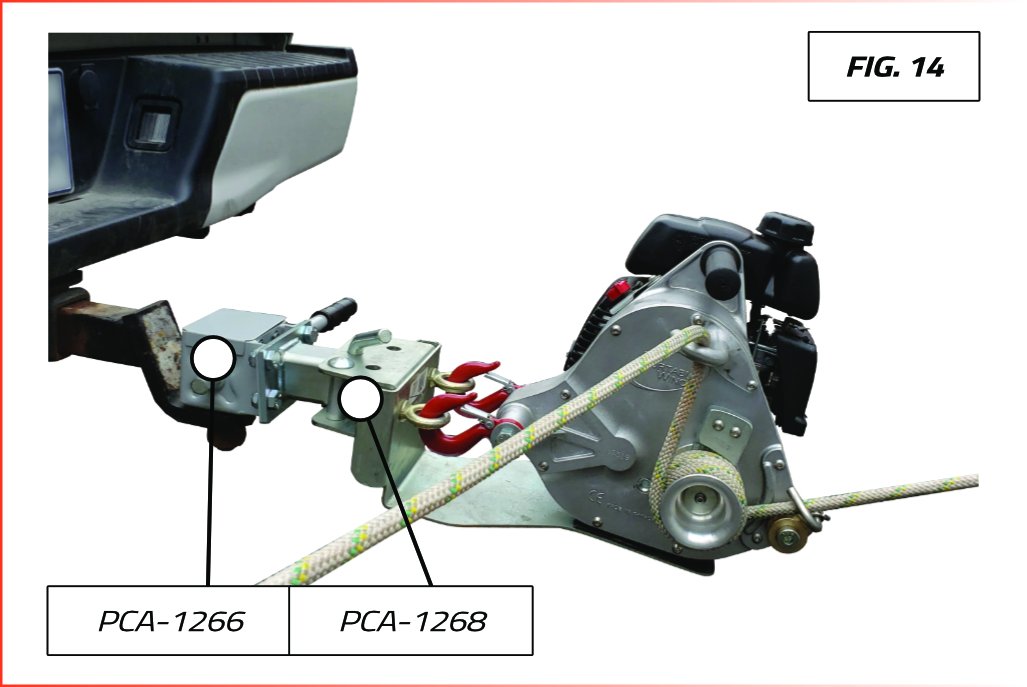

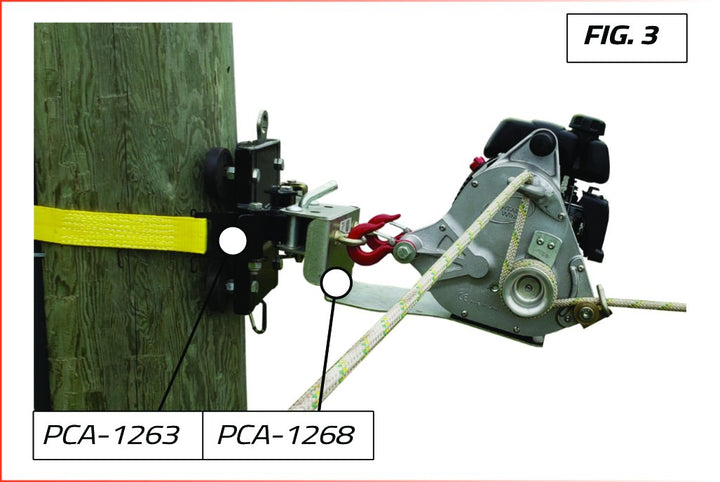

For example, when paired with specific accessories, it allows for horizontal pulling. In such cases, the winch faces the load directly, and the rope is aligned in a straight line towards the winch. (Refer to Fig. 3, 9, 14, 19)
Compatible with the following winch models: PCW3000-Li, PCW3000, PCW4000, PCW5000, and PCW5000-HS.
For more information, please refer to the “Additional Information” tab, where you can find an informative videos and the manual.

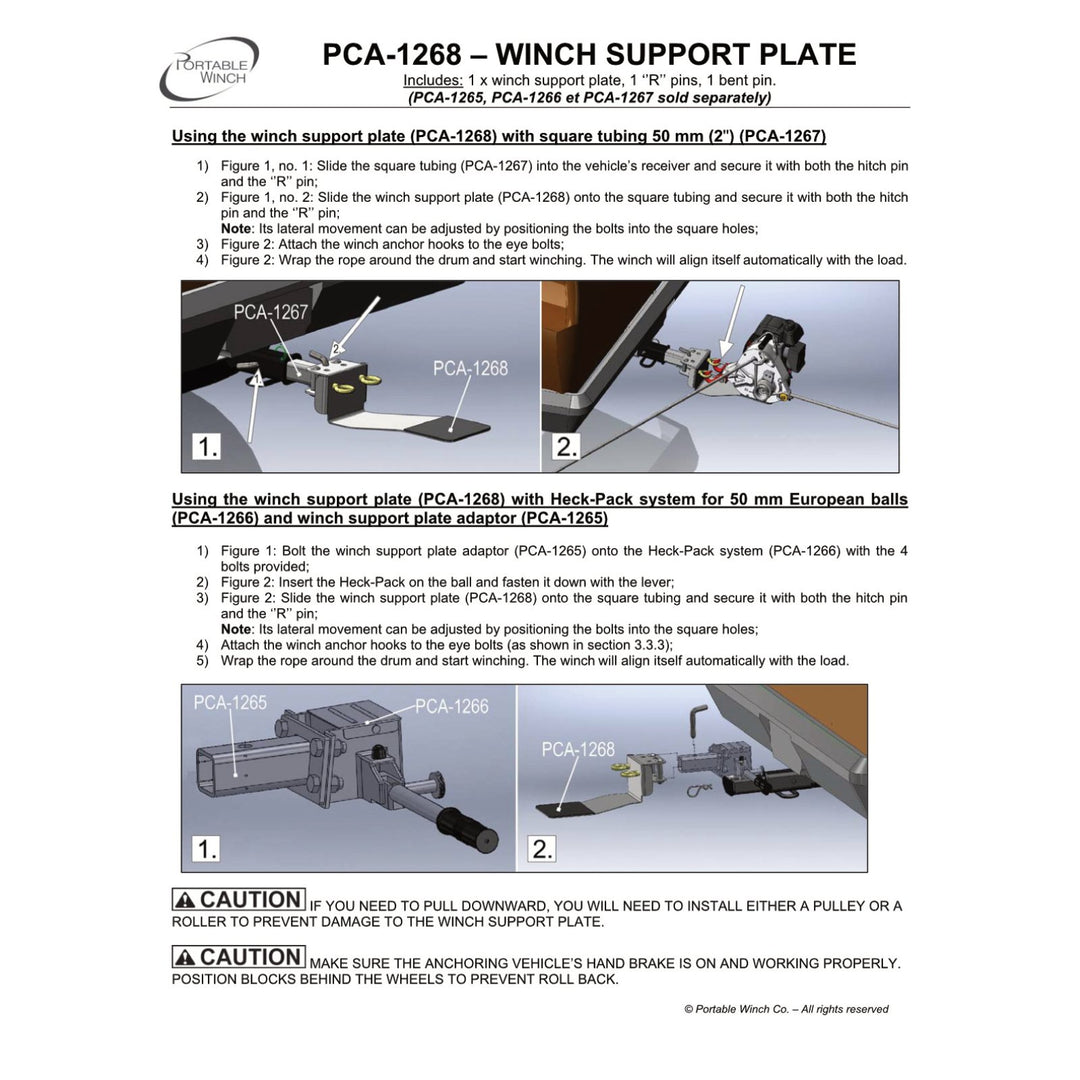

Find the manual here.
Material: Zinc plated steel
Weight: 4.1 kg
Dimensions: 44 cm x 27 cm x 14 cm
|
